Detecting Riparian and Inland Floodplain Transitions • drift

Detecting riparian and inland floodplain transitions: track land cover change within floodplains over time.

drift is an R package that fetches free global land-cover maps, or your own classified rasters, for any area, such as a floodplain, compares them between two dates and across every year of a series, and turns the change into maps, tables and change polygons. It also fetches dated Sentinel-2 and Esri Wayback imagery to check mapped change against, supports accuracy assessment, and tags change areas with records you supply, such as fire perimeters or cutblocks. The result shows where streamside forest, fields and channels have changed, for restoration planning and for monitoring sites over time.

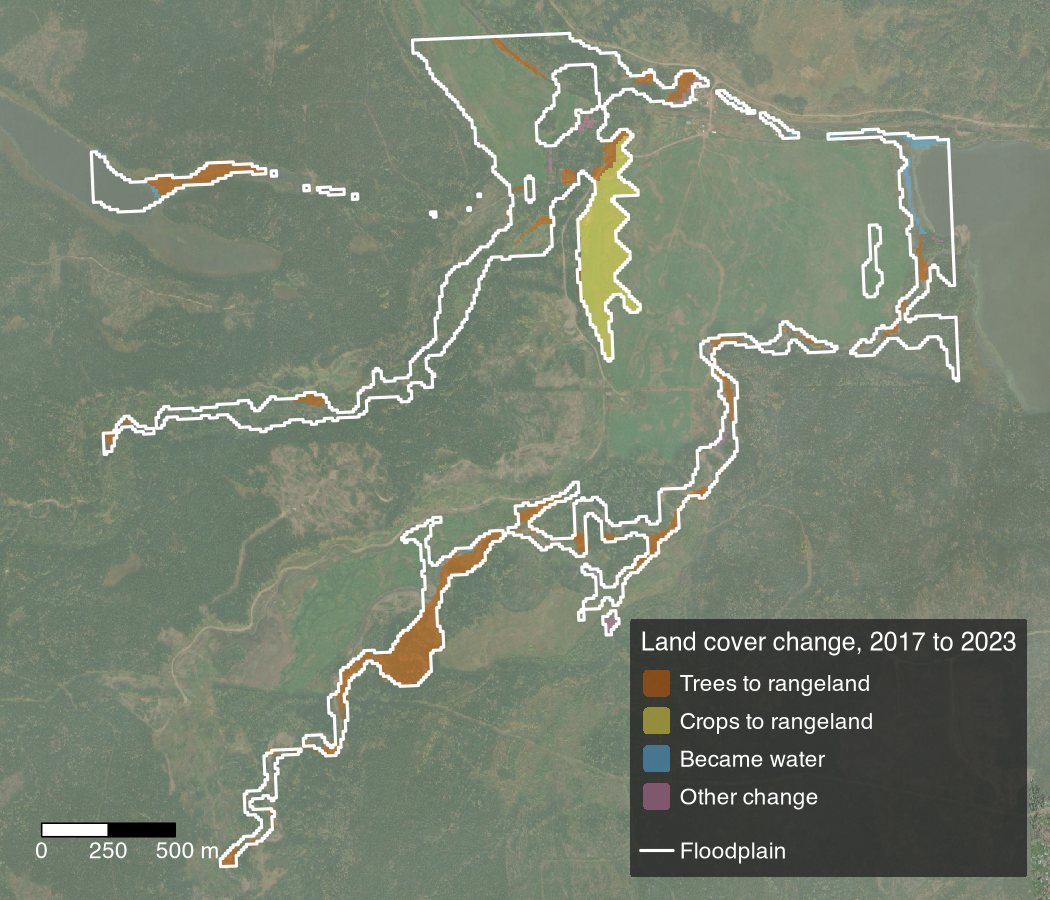

Map of a floodplain reach over aerial imagery, outlined in white. Change between 2017 and 2023 is coloured: large orange areas where trees became rangeland, a yellow field where crops became rangeland, thin blue edges where land became water, and a few small pink patches of other change.

Where the mapped land-cover class changed between 2017 and 2023 on a reach of Neexdzii Kwa (Upper Bulkley River), BC, from the data bundled with drift. 34 of the 123 ha mapped changed class; “Other change” lumps the remaining 1.2 ha. Land cover: Esri / Impact Observatory IO LULC. Imagery: Esri World Imagery.

Installation

pak::pak("NewGraphEnvironment/drift")

The functions that read STAC or Sentinel-2 imagery need gdalcubes, which was archived on CRAN. Install NewGraphEnvironment’s fork, which reports failed reads, even if gdalcubes is already installed. Trajectory break detection also needs bfast.

pak::pak("NewGraphEnvironment/gdalcubes@newgraph")
pak::pak("bfast")

drift is under active development and its functions change between releases (see NEWS). Pin a release for reproducible work: pak::pak("NewGraphEnvironment/drift@vX.Y.Z").

Example

Compare 2017 and 2023 on the bundled reach:

library(drift)

d <- system.file("extdata", package = "drift")
lulc <- list(`2017` = terra::rast(file.path(d, "example_2017.tif")),
             `2023` = terra::rast(file.path(d, "example_2023.tif")))
classified <- dft_rast_classify(lulc, source = "io-lulc")
change <- dft_rast_transition(classified, from = "2017", to = "2023")
head(change$summary, 6)
#> # A tibble: 6 × 5
#>   from_class to_class  n_cells  area   pct
#>   <chr>      <chr>       <int> <dbl> <dbl>
#> 1 Trees      Trees        4918 49.2  40.0
#> 2 Rangeland  Rangeland    3026 30.3  24.6
#> 3 Trees      Rangeland    2111 21.1  17.2
#> 4 Crops      Rangeland     998  9.98  8.11
#> 5 Water      Water         938  9.38  7.62
#> 6 Trees      Water          98  0.98  0.8

area is hectares. For your own area, dft_stac_fetch() fetches the land cover for a polygon.

Learn more

Land Cover Change Detection for Floodplains: fetch, classify and compare land cover on the Neexdzii Kwa floodplain, down to single change patches.
Trajectories as a Check on Land-Cover Change: a Sentinel-2 vegetation index through time, its abrupt breaks and gradual trends.
What a Land-Cover Change Figure Is Made Of: reading every year of a series, not only the two ends.
When Did the Floodplain Change?: dating mapped change with Sentinel-2 and Esri Wayback imagery.
Function reference.

Ecosystem

Package	Role
fresh	Stream network modelling engine: segment, classify, cluster, aggregate
link	Intrinsic habitat models: develop, test and communicate
wet	Stream flow and water temperature for BC’s Freshwater Atlas
flooded	Delineate floodplain extents from DEMs and stream networks
drift	Track land cover change within floodplains over time (this package)
floodplains	Floodplain and land cover change modelling for BC watershed groups
stac_floodplains_bc	STAC catalogue of floodplain land cover change in BC, 2017-2023, by watershed group
cd	Climate departure analysis from ERA5-Land reanalysis
fly	Estimate airphoto footprints and select optimal coverage for a study area
gq	Shared map symbology

Data and methods it builds on

drift reads Esri / Impact Observatory IO LULC and ESA WorldCover land cover, and Sentinel-2 L2A imagery, from the Microsoft Planetary Computer STAC catalogue through gdalcubes, and dated sub-metre imagery from Esri World Imagery Wayback. Vegetation trajectories default to kNDVI, with abrupt breaks from BFAST Monitor (bfast) and gradual trends as Theil-Sen slopes with a Mann-Kendall test. Accuracy and error-adjusted area follow Olofsson et al. (2014) and Stehman (2014), through mapaccuracy.

Citation and license

Cite drift with citation("drift"), or from CITATION.cff. MIT licensed; see LICENSE.
