Detect sustained class switches across an annual classified series

Scan each pixel's class sequence across a named list of classified rasters (one per year) and report whether it is stable, a clean switch (class A for N years, then class B for M years, and nothing else) or flicker (more than one change of class). A clean switch is dated. This is the temporal, categorical-only leg of change QA: where dft_transition_artifact() asks whether a patch has the shape of a registration artifact and dft_rast_break() asks whether the spectral signal actually moved, this asks whether the labels themselves settled.

Usage

dft_rast_break_class(x, class_table = NULL, source = "io-lulc", unit = "ha")

Arguments

x: A named list of classified SpatRasters (e.g. from dft_rast_classify()), one per year, whose names parse as integer years ("2017", ...). Order does not matter; layers are sorted by year. At least two, each single-layer and in the same CRS. Rasters on a different grid from the first are resampled to it (nearest neighbour).
class_table: A tibble with columns code, class_name, color. When NULL, loaded via dft_class_table() using source.
source: Character. Used to load a shipped class table when class_table is NULL. One of "io-lulc" or "esa-worldcover".
unit: Character. Area unit for the summary. One of "ha" (default), "km2", or "m2".

Value

A list with three elements:

raster: a single-layer factor SpatRaster named transition, encoding the first-year to last-year class pair of every pixel as from * 1000 + to with levels labelled "from_class -> to_class" — identical to dft_rast_transition(x, from = <first>, to = <last>)$raster, so it feeds dft_transition_vectors() and dft_transition_artifact() unchanged.
breaks: a four-layer integer SpatRaster of per-pixel evidence:
- break_year — the first year of the new class for a clean switch; NA for stable and flicker pixels
- n_before, n_after — years in the old and new class either side of the switch; NA unless n_flips == 1. Confidence is min(n_before, n_after): a pixel whose last year alone differs is a clean switch with n_after == 1, and one whose first year alone differs has n_before == 1.
- n_flips — number of year-to-year class changes: 0 stable, 1 a clean switch, 2 or more flicker
summary: a tibble with one row per (from_class, to_class, status, break_year) with n_cells, area and pct of all valid pixels. status is "stable" (n_flips == 0), "break" (1) or "flicker" (>= 2), or NA where an interior year is NA; break_year is NA except for "break" rows.

Details

A two-epoch comparison such as 2017 -> 2023 reports every pixel whose label differs between the endpoints. This function splits that set: pixels with a clean, dated switch; pixels that differ between the endpoints but flicker in between (label noise — the borderline pixels that carry no spectral break); and pixels that differ only because the first or last year is itself the odd one out (n_before == 1 or n_after == 1). It also finds what the two-epoch comparison cannot: a pixel that switched and switched back, which reads as stable on the endpoints and is flicker here.

No threshold is applied — every measurement is reported and the caller composes, e.g. n_flips == 1 & pmin(n_before, n_after) >= 2 for a switch sustained at least two years on each side. Compare dft_rast_consensus(), which votes a real mid-window switch back to its old class because the pre-change years outnumber the post-change ones; here that pixel is a dated break.

break_year is an integer calendar year, unlike break_date from dft_rast_break(), which is a decimal year from a monthly spectral series.

NA handling follows the two-epoch comparison: the transition layer is NA where the first or last year is NA, exactly as dft_rast_transition() propagates NA from either epoch. An NA in any interior year leaves the transition in place but makes all four evidence layers NA — the sequence cannot be scanned — and such pixels appear in summary with status NA. Note that IO LULC carries No Data (code 0) and Clouds (code 10) as real classes rather than NA, so a cloudy year counts as a flip; remap or mask them first if that is not wanted.

Memory

The scan is a single streamed terra::app() pass over the stacked series, written to a temporary LZW-compressed file, and the summary is a terra::crosstab() over that file — nothing full-grid is pulled into R. Scale numbers for a 169M-cell floodplain grid (the BULK watershed group at 10 m, seven years) are in NEWS.md.

Examples

# the bundled Neexdzii Kwa reach ships every IO LULC year 2017-2023
years <- 2017:2023
rasters <- lapply(years, function(yr) {
  terra::rast(system.file("extdata", paste0("example_", yr, ".tif"),
                          package = "drift"))
})
names(rasters) <- years
classified <- dft_rast_classify(rasters, source = "io-lulc")

res <- dft_rast_break_class(classified)
head(res$summary)
#> # A tibble: 6 × 7
#>   from_class to_class  status  break_year n_cells  area   pct
#>   <chr>      <chr>     <chr>        <int>   <int> <dbl> <dbl>
#> 1 Trees      Trees     stable          NA    3425 34.2  27.8
#> 2 Rangeland  Rangeland stable          NA    1762 17.6  14.3
#> 3 Trees      Trees     flicker         NA    1493 14.9  12.1
#> 4 Rangeland  Rangeland flicker         NA    1264 12.6  10.3
#> 5 Water      Water     stable          NA     920  9.2   7.47
#> 6 Trees      Rangeland flicker         NA     789  7.89  6.41

# of the pixels the 2017 -> 2023 comparison calls change, how much is a
# clean, dated switch and how much never settled?
changed <- res$summary[res$summary$from_class != res$summary$to_class, ]
tapply(changed$area, changed$status, sum)
#>   break flicker
#>   21.38   12.65

# a switch is only as sure as its shorter side: n_after == 1 means the last
# year alone differs
ev <- terra::values(res$breaks)
table(pmin(ev[, "n_before"], ev[, "n_after"]))
#>
#>    1    2    3
#> 1040  347  751

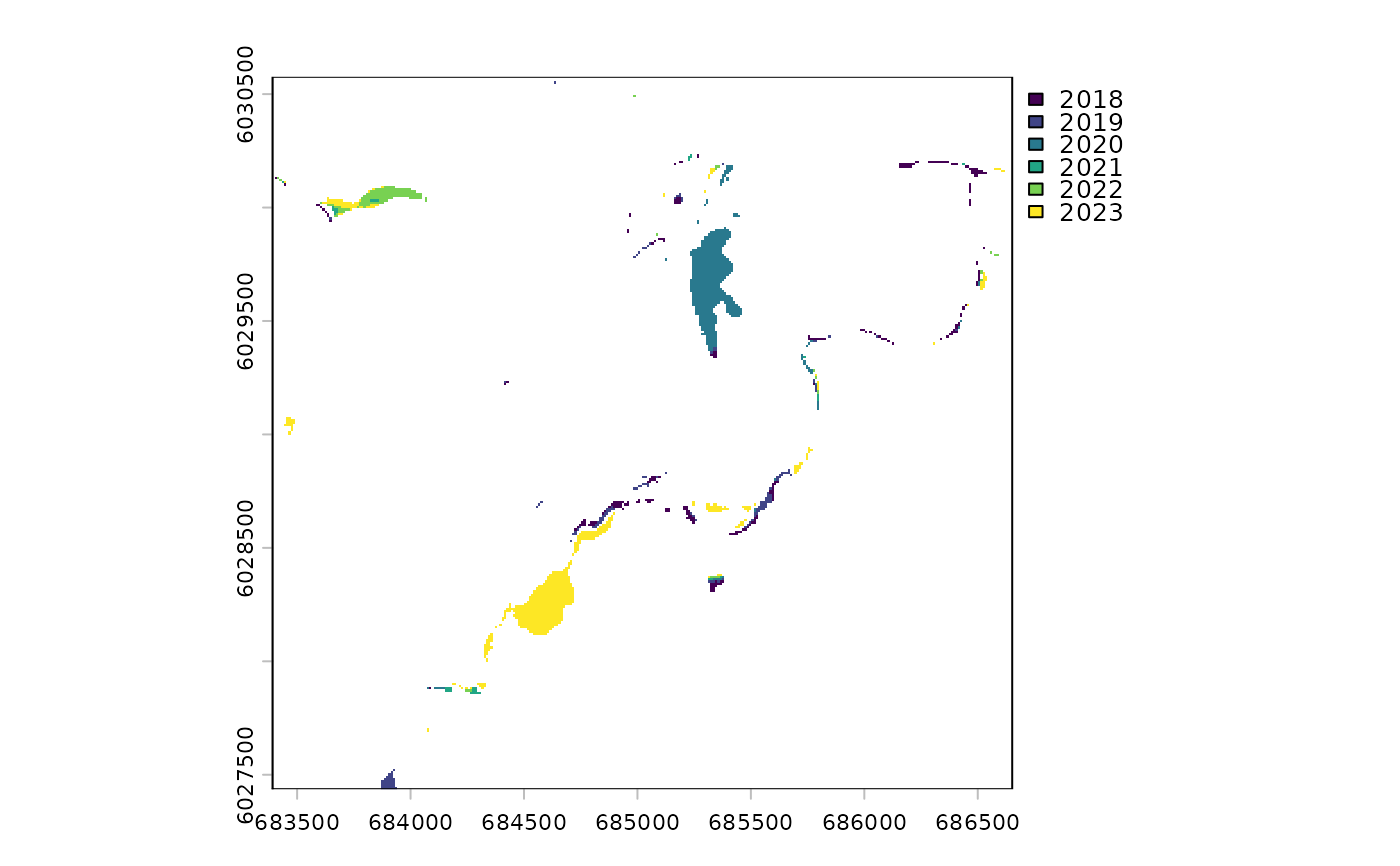

terra::plot(res$breaks[["break_year"]])


# the transition layer feeds the patch tools unchanged
patches <- dft_transition_vectors(res$raster, changes_only = TRUE)
tagged <- dft_transition_artifact(patches, res$raster)
head(sf::st_drop_geometry(tagged))
#>   patch_id         transition area_ha  width_m width_px flag_sliver
#> 1        1 Trees -> Rangeland    0.41 10.78947 1.078947        TRUE
#> 2        2 Rangeland -> Trees    0.01  5.00000 0.500000        TRUE
#> 3        3 Trees -> Rangeland    0.01  5.00000 0.500000        TRUE
#> 4        4 Trees -> Rangeland    0.01  5.00000 0.500000        TRUE
#> 5        5 Trees -> Rangeland    0.30 21.42857 2.142857       FALSE
#> 6        6 Trees -> Rangeland    0.70 24.13793 2.413793       FALSE
#>   boundary_frac flag_boundary reciprocal_id reciprocal_dist_m flag_reciprocal
#> 1     0.8536585          TRUE            NA                NA           FALSE
#> 2     1.0000000          TRUE             3                30            TRUE
#> 3     1.0000000          TRUE             2                30            TRUE
#> 4     1.0000000          TRUE            NA                NA           FALSE
#> 5     0.0000000         FALSE            NA                NA           FALSE
#> 6     0.1000000         FALSE            NA                NA           FALSE
