Temporal category of every pixel in a break-class scan

Source: R/dft_rast_break_category.R
dft_rast_break_category.Rd

dft_break_category() at pixel grain: the same "v1" rule, applied to the per-pixel measurements rather than to the summary rows, so the label can be mapped, patched, or crossed against anything else on the grid.

Usage

dft_rast_break_category(x, rule = "v1", filename = NULL, overwrite = FALSE)

Arguments

x

The list returned by dft_rast_break_class(). $breaks supplies the measurements and $raster whether the endpoints differ. $years is not needed here and not required: n_before and n_after are measured per pixel, so the strength is read off them rather than recovered from break_year the way dft_break_category() must do at row grain. A result saved before drift 0.16.0 therefore works unchanged.

rule

Character. The labelling rule; only "v1" exists. Recorded on the result as the drift_break_rule metadata tag, and implied by the category level labels themselves.

filename

Character or NULL. Where to write the result. A floodplain-scale grid is worth putting somewhere you chose; NULL writes a temporary file that R removes at the end of the session.

The file carries the integer codes 0:4, not the labels: the levels are set on the returned object after the write, so no .tif.aux.xml RAT sidecar is produced — one whose loss is silent, and which the rest of this package avoids for that reason. terra::rast(filename) therefore returns a plain integer raster; re-attach labels with the id order in @return, or keep the object this returns.

overwrite

Logical. Replace filename if it already exists. terra refuses by default and its error names this remedy, so the argument has to exist for the message to be actionable.

Value

A two-layer SpatRaster:

  • category — a factor with ids 0:4 labelled stable, break_sustained, break_endpoint, unsettled, stable_flicker, in that order

  • strength — dft_break_strength() as an integer, NA off a clean switch

NA where the pixel could not be scanned, which is every pixel with an NA in any year.

Details

The rule, the reason levels 3 and 4 must never be summed, and why the threshold is not an argument are all documented once, under dft_break_category().

Memory

One streamed terra::app() pass over $breaks plus the transition layer, written straight to filename — nothing full-grid is pulled into R, and the chunk size is bounded rather than left to terra's memory heuristic, which takes a 192M-cell grid in one or two chunks on a large machine.

See also

dft_break_category() for the same rule over summary rows; dft_rast_break_class() for the measurements.

Examples

years <- 2017:2023
rasters <- lapply(years, function(yr) {
  terra::rast(system.file("extdata", paste0("example_", yr, ".tif"),
                          package = "drift"))
})
names(rasters) <- years
res <- dft_rast_break_class(dft_rast_classify(rasters, source = "io-lulc"))

cat_r <- dft_rast_break_category(res)

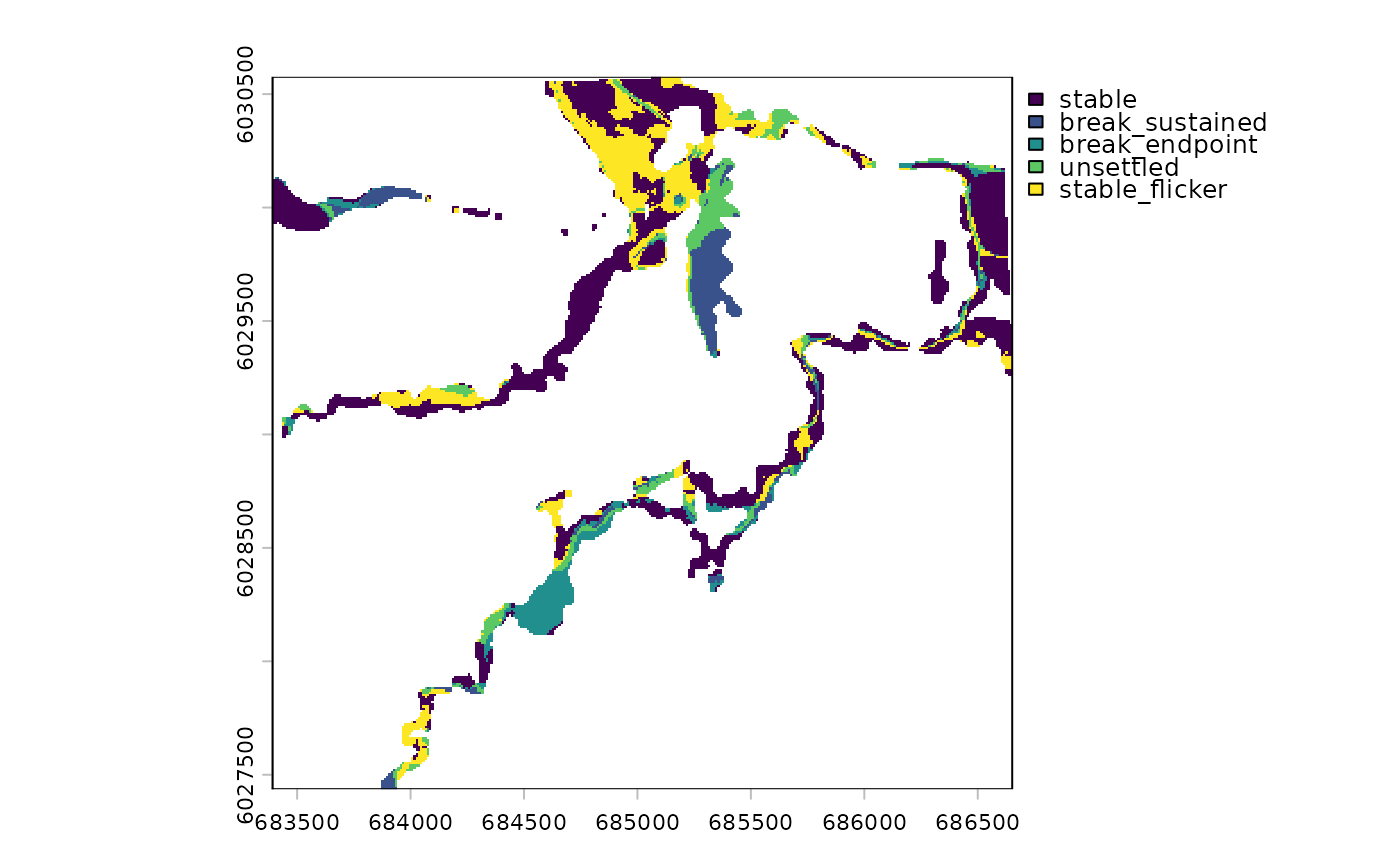

terra::plot(cat_r[["category"]])


# pixel grain and summary grain are the same rule, so they agree
terra::freq(cat_r[["category"]])
#>   layer           value count
#> 1     1          stable  6117
#> 2     1 break_sustained  1098
#> 3     1  break_endpoint  1040
#> 4     1       unsettled  1265
#> 5     1  stable_flicker  2791
